Comparative analysis of sorting algorithms

As part of a typical university algorithms exercise, I ran a small comparative analysis of the most popular sorting algorithms. The idea was to study complexity and see how different approaches to the same problem can produce very different execution times.

This is a simple academic analysis, but I wanted to document it in case it helps other computer science students in the future.

I started with a small Java script to generate random five-digit numbers and store them in a text file, so I could benchmark all algorithms against exactly the same dataset. The script is available in this repository:

# File path
> algorithms/java/RandomNumbers.java

# Run Java script
$ javac RandomNumbers.java && java RandomNumbers

That produces numbers/numbers.txt with n random numbers configured in the script. In my experiments I generated up to 1,000,000,000 values (about 5 GB), so I did not include that dataset in the repository.

---

Evaluated algorithms

I implemented the following algorithms:

• Bubble Sort: O(n^2)
• Counting Sort: O(n+k)
• Heap Sort: O(n log n)
• Insertion Sort: O(n^2)
• Merge Sort: O(n log n)
• Quicksort: O(n log n)
• Selection Sort: O(n^2)

I used C for implementations, under algorithms/c/sortAlgorithms.

---

Benchmark automation

Since this required many runs, I automated execution with two scripts:

# Base benchmark script
> algorithms/c/benchmark.c

# Run one benchmark
$ gcc benchmark.c -o benchmark.out && ./benchmark.out arg1 arg2

# Multi-run script
> algorithms/c/runTest.c

# Run all tests
$ gcc runTest.c -o runTest.out && ./runTest.out

I ran this in a small controlled environment to minimize interference from other processes.

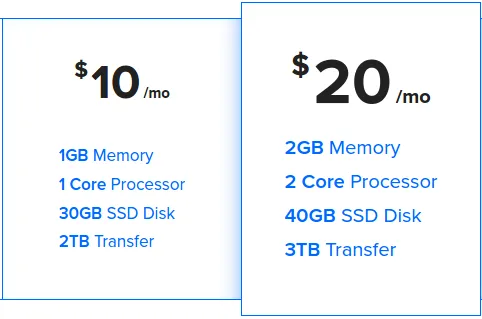

I created two Digital Ocean droplets:

The second machine had double resources, so better performance seemed expected.

I also provisioned Java and C using this script: ServerConfig/provision.sh

sudo apt-get update -y
sudo apt-get upgrade -y
sudo apt-get install -y build-essential gcc python-dev python-pip python-setuptools
sudo apt-get install -y git
sudo apt-get install default-jre -y
sudo apt-get install default-jdk -y
sudo apt-get install openjdk-7-jre -y
sudo apt-get install openjdk-7-jdk -y

---

Results

Both machines used the same random dataset, with growing input sizes. Full results are in results/analysis.ods.

I also used this background execution trick:

$ gcc runTest.c -o runTest.out && ./runTest.out
# Ctrl + z
disown -h %1
bg 1

After 3-4 days, the O(n^2) algorithms had only reached 1,600,000 elements, so I stopped there and analyzed.

M1 = Machine 1 (1 core, 1GB RAM)
M2 = Machine 2 (2 cores, 2GB RAM)

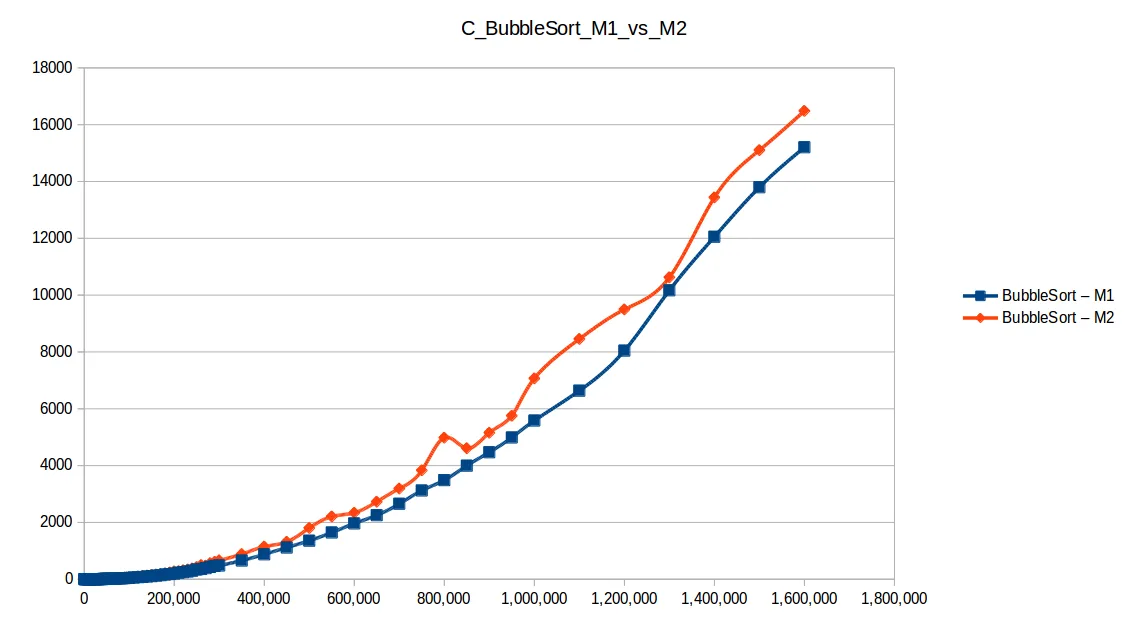

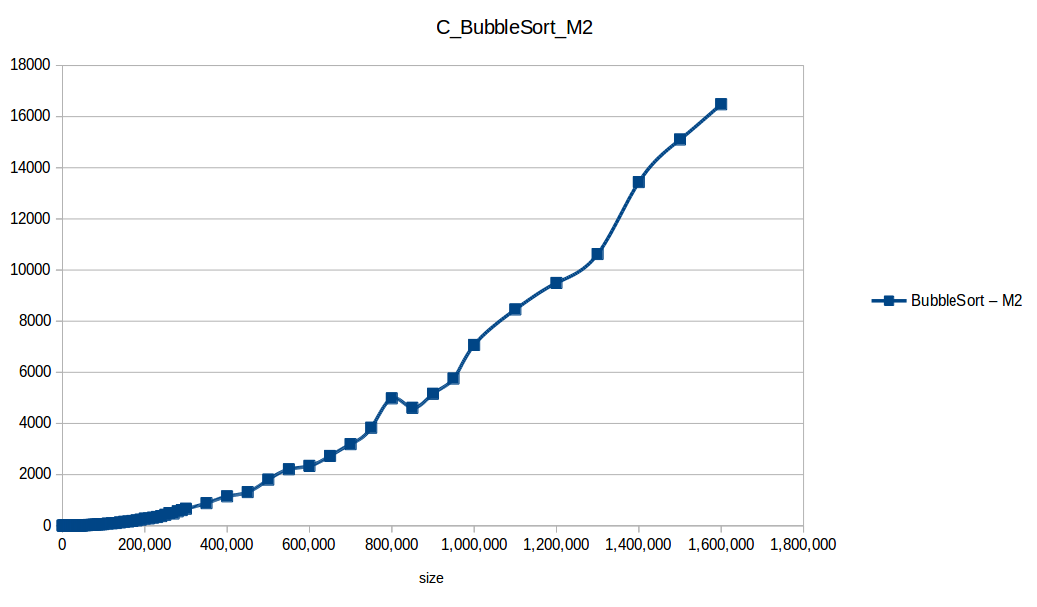

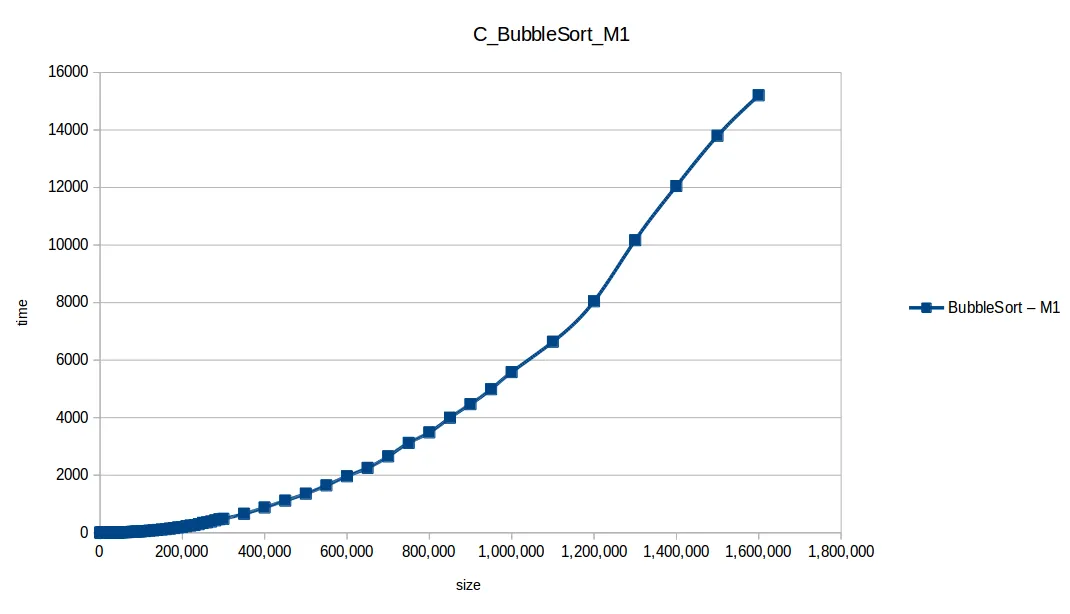

Bubble Sort: O(n^2)

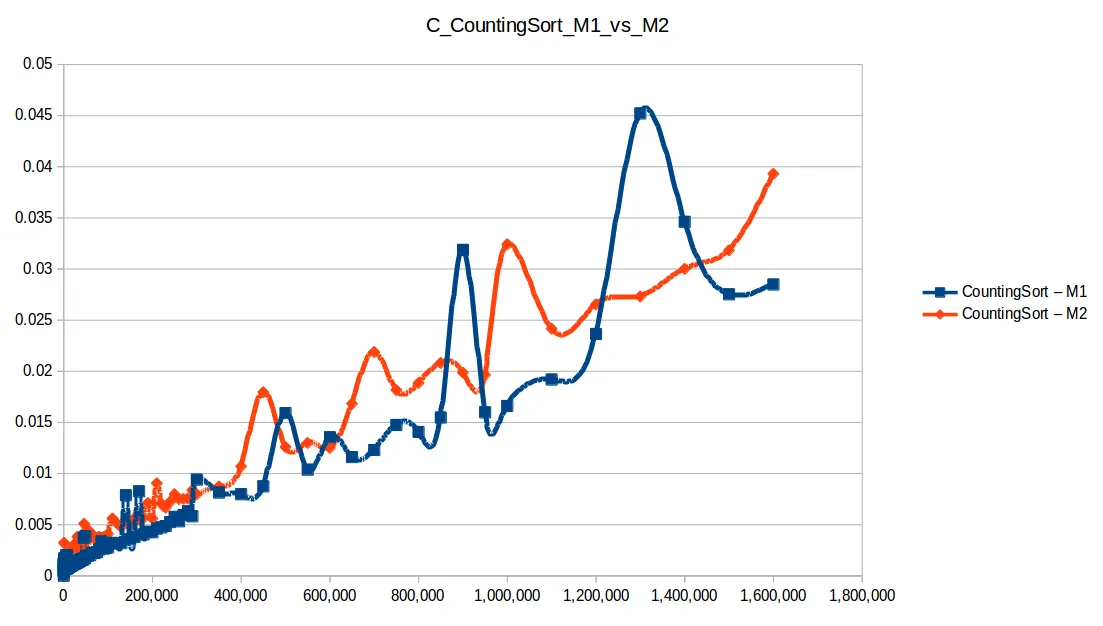

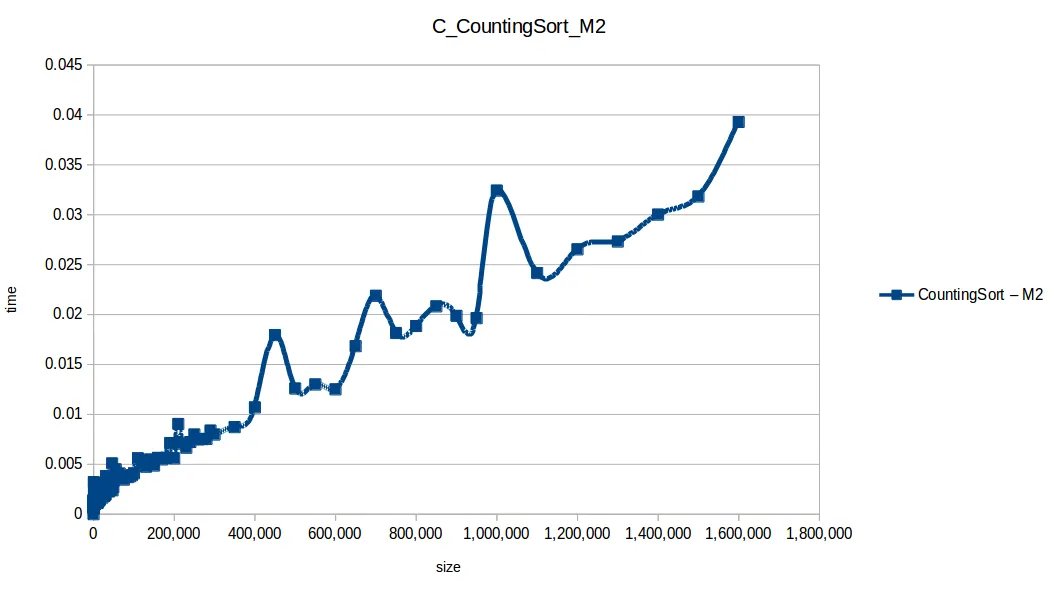

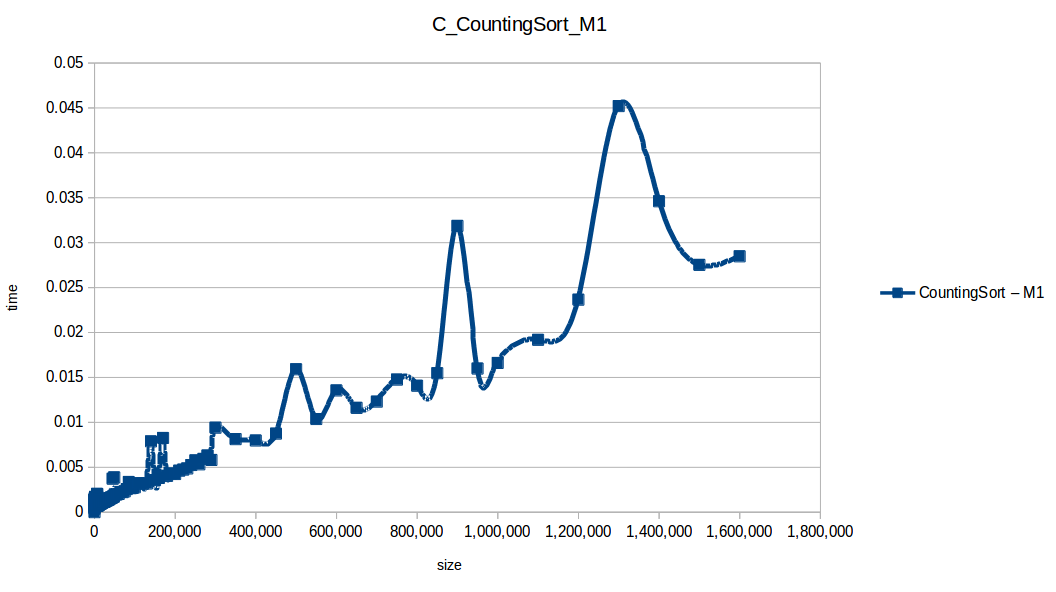

Counting Sort: O(n+k)

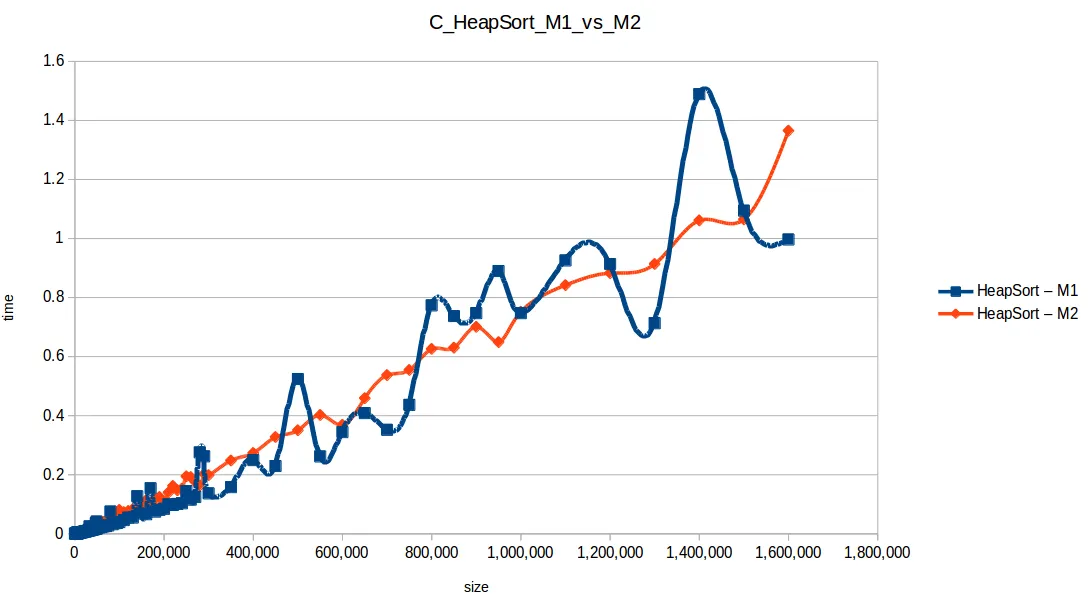

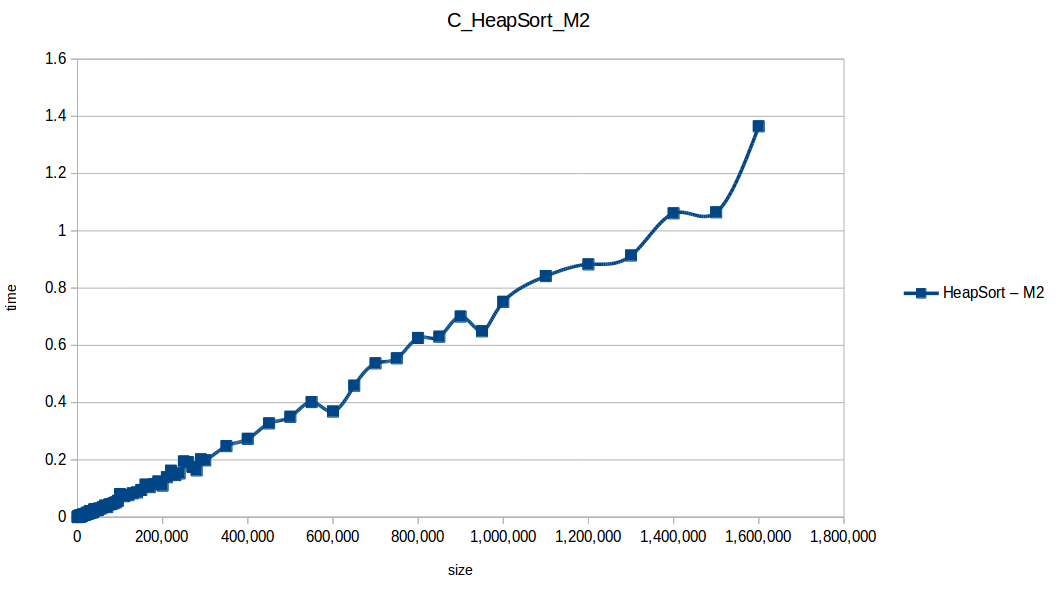

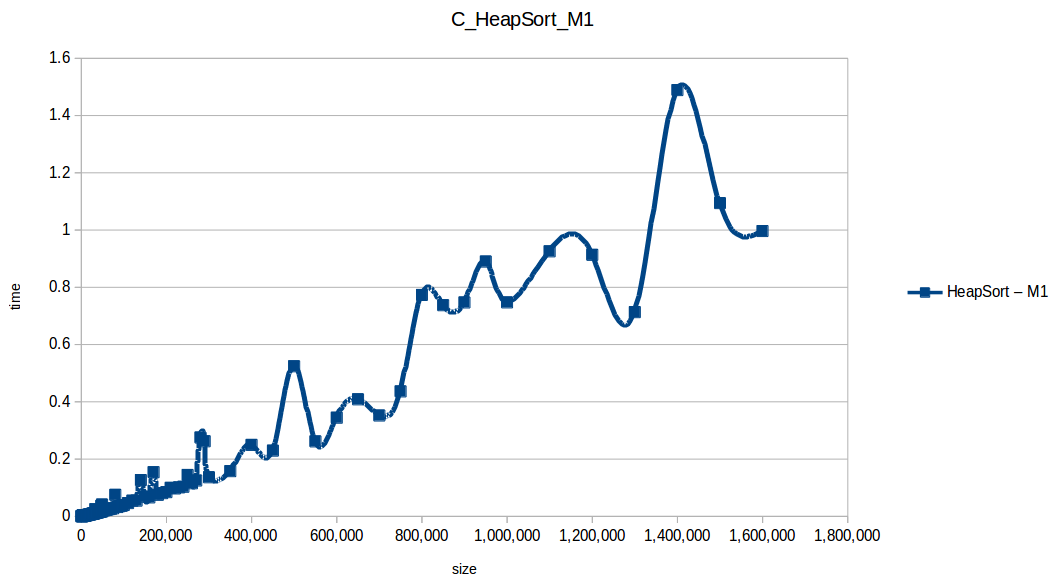

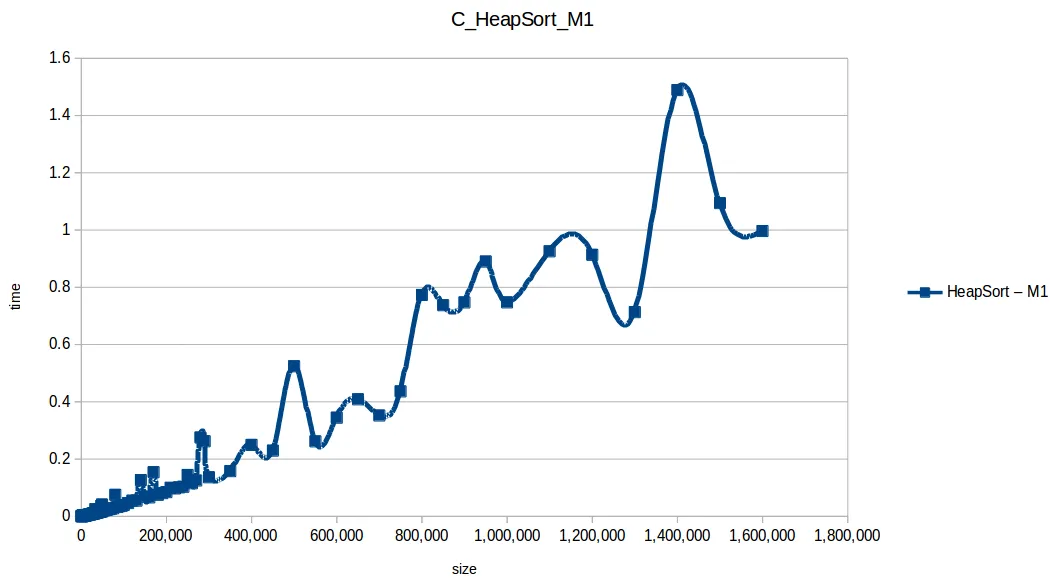

Heap Sort: O(n log n)

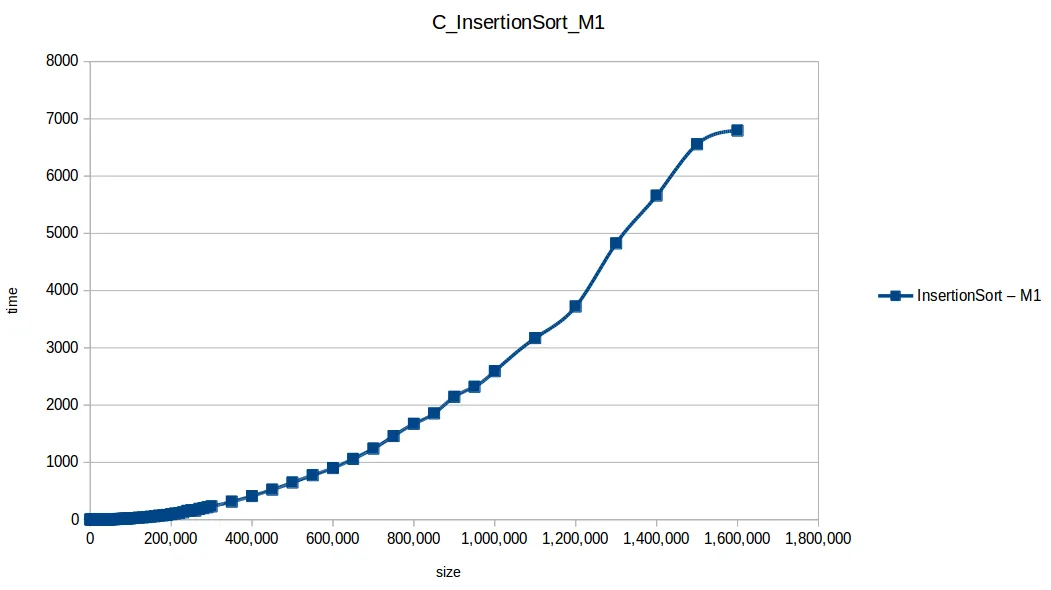

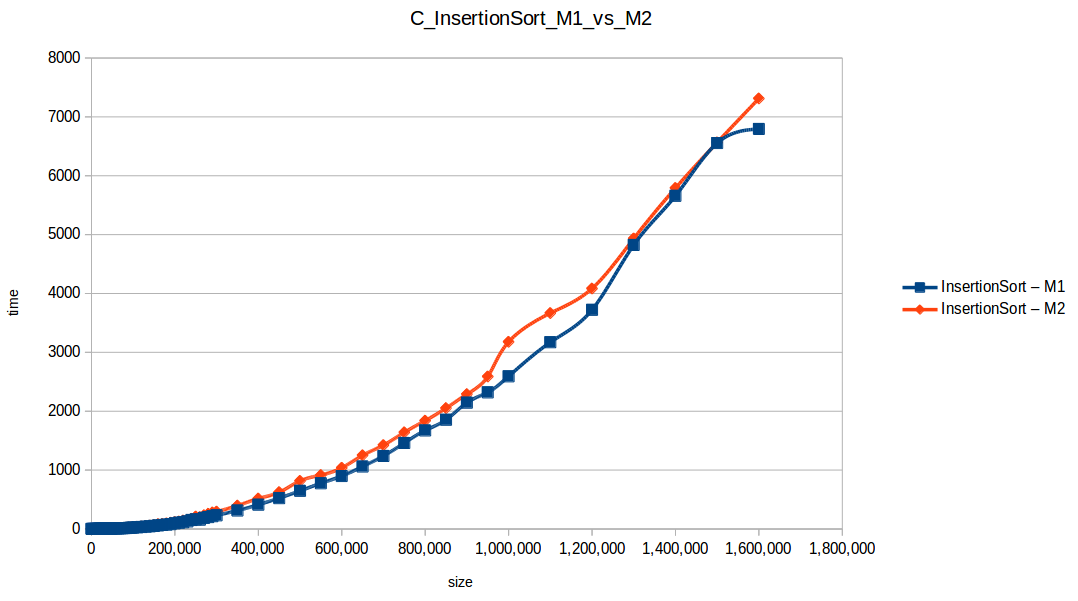

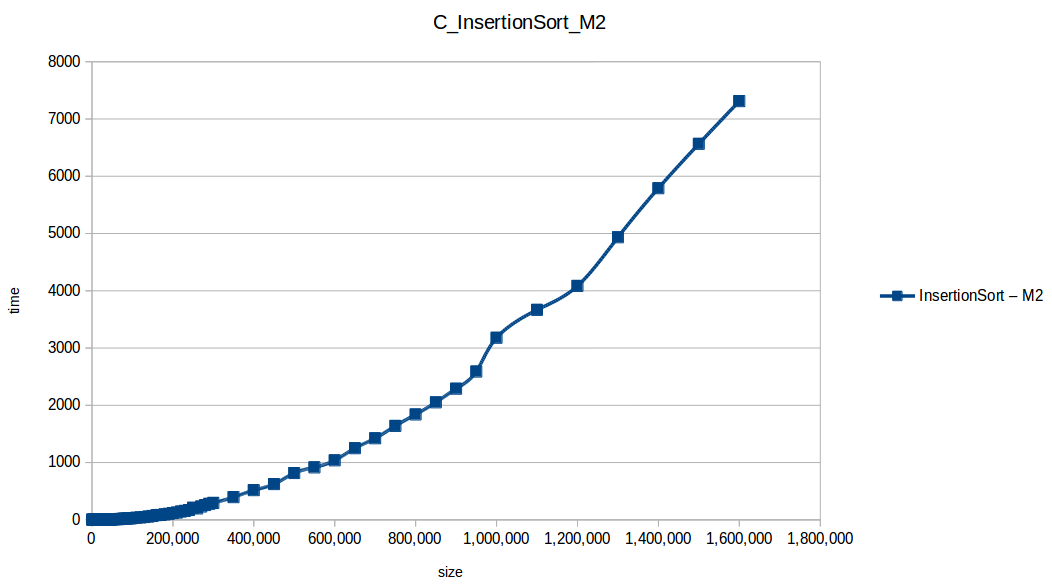

Insertion Sort: O(n^2)

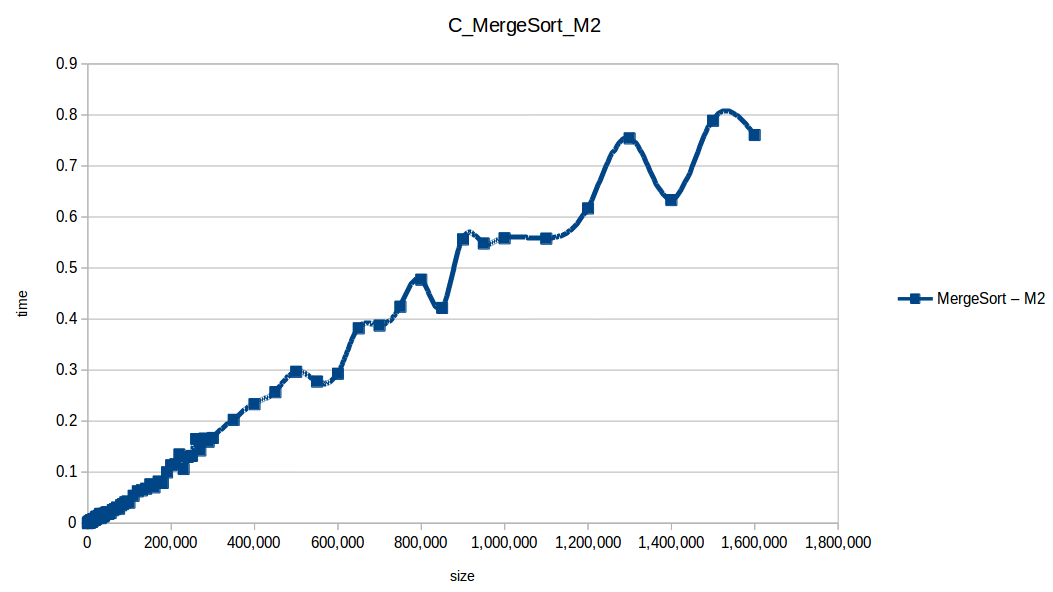

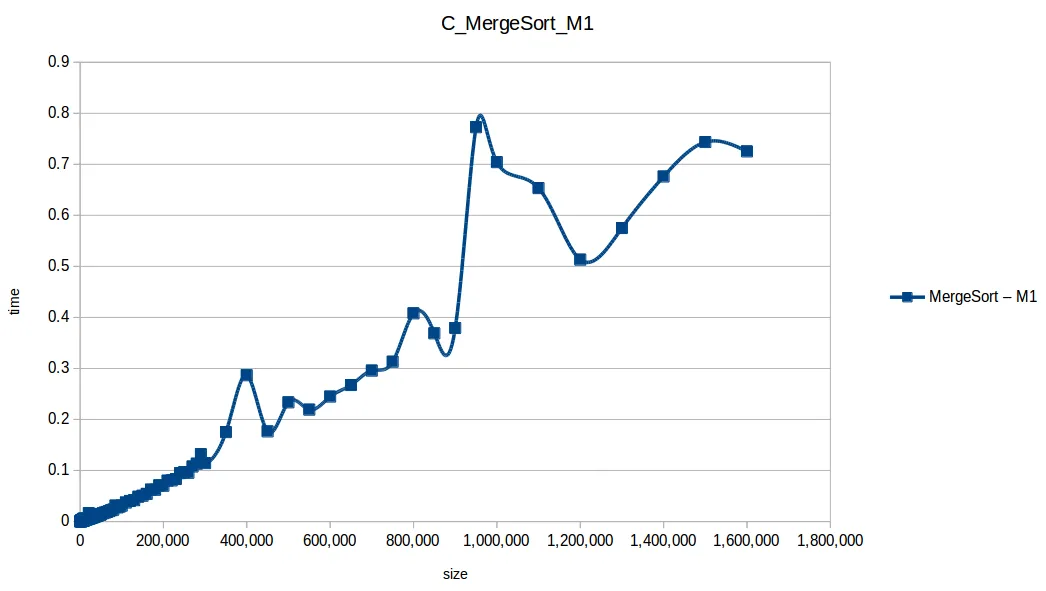

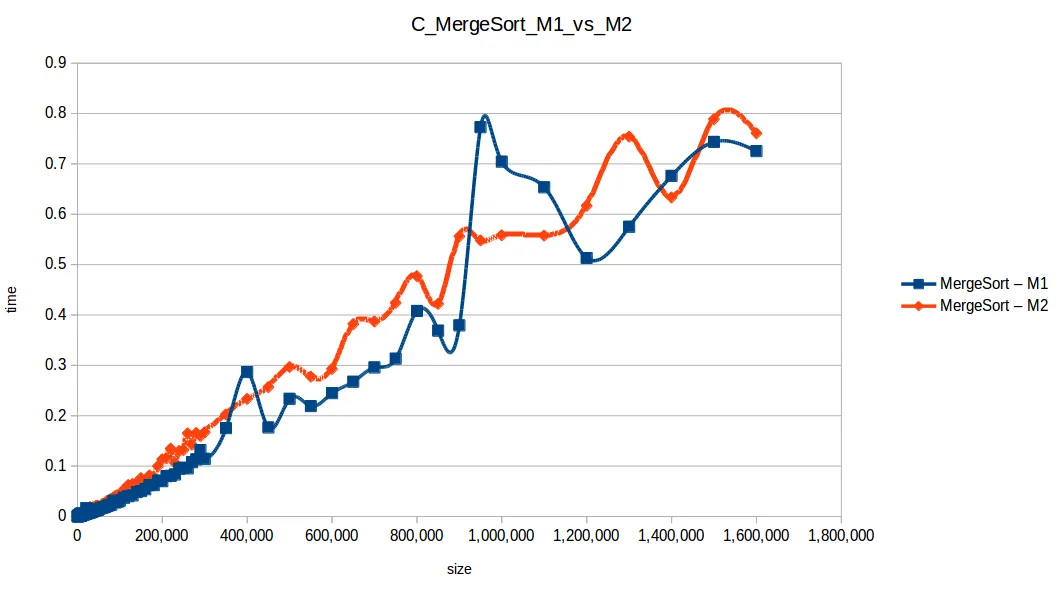

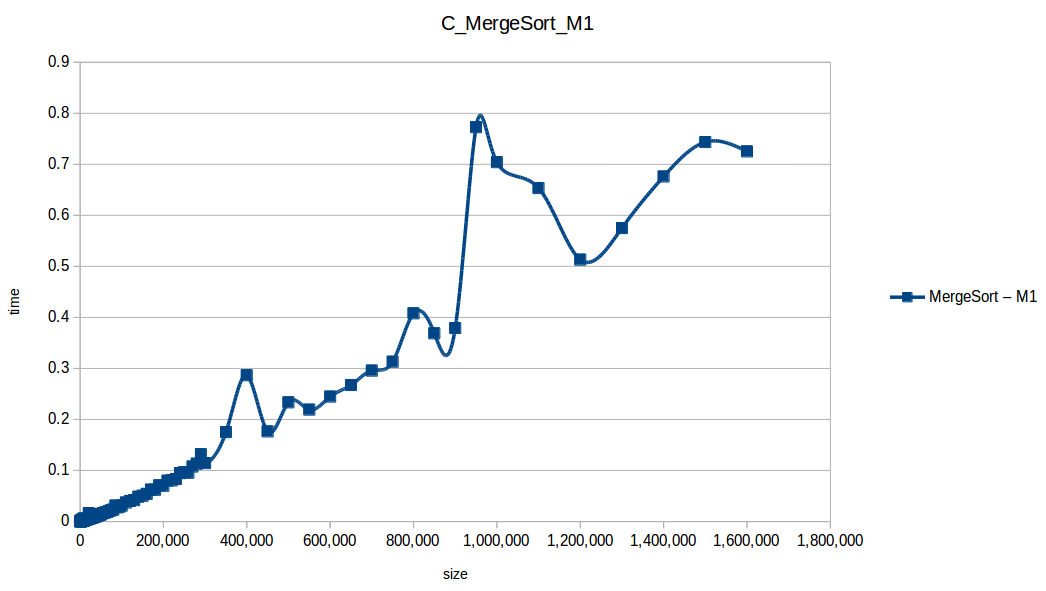

Merge Sort: O(n log n)

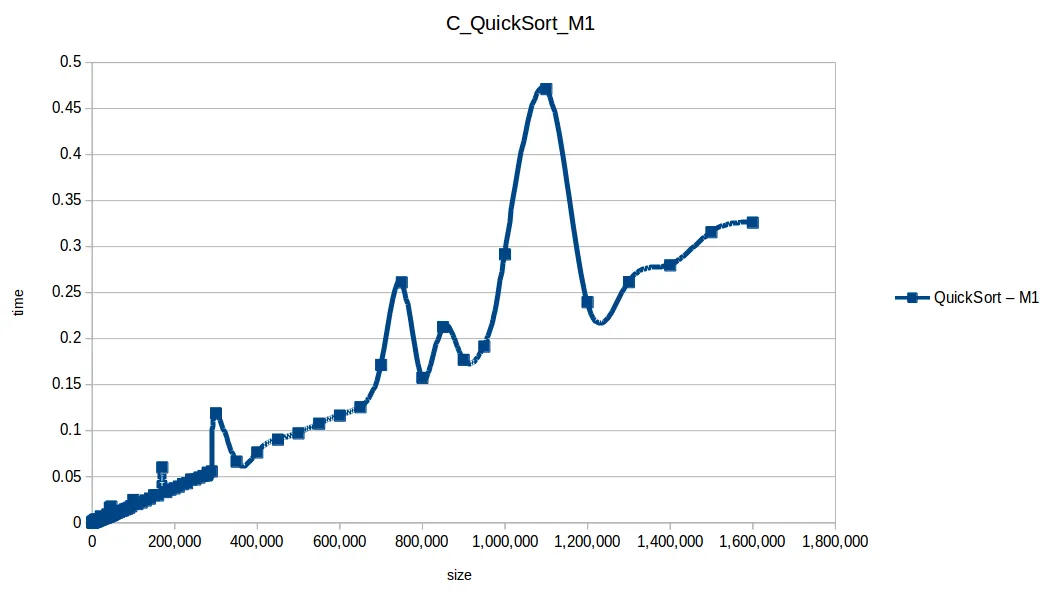

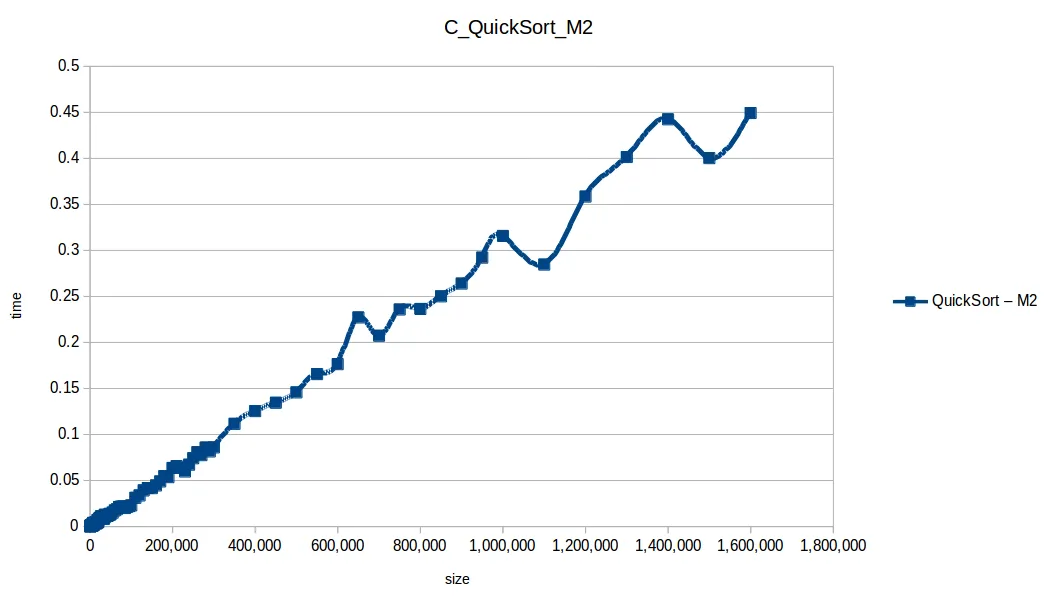

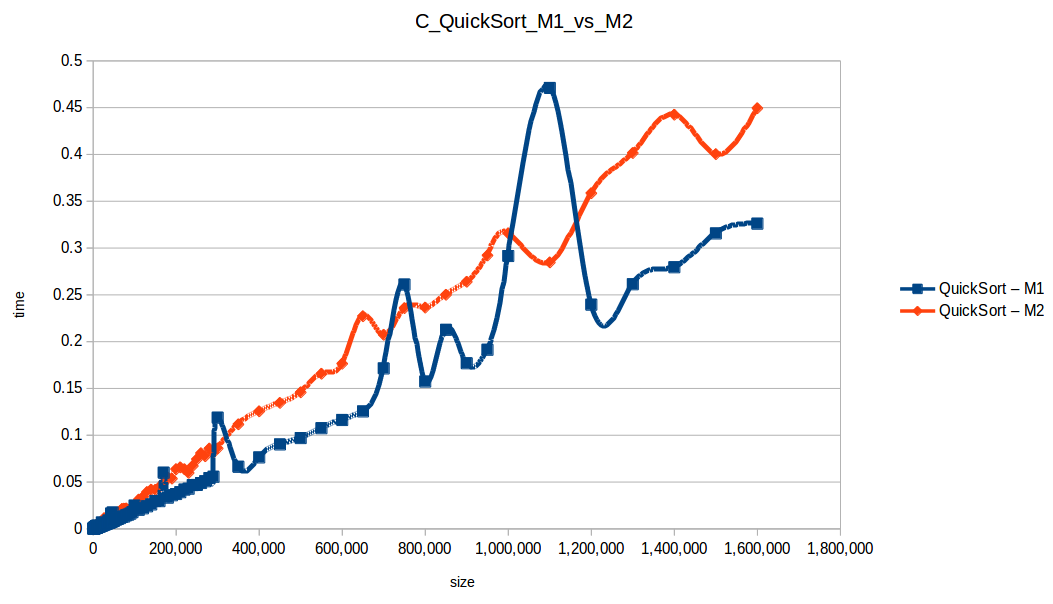

Quicksort: O(n log n)

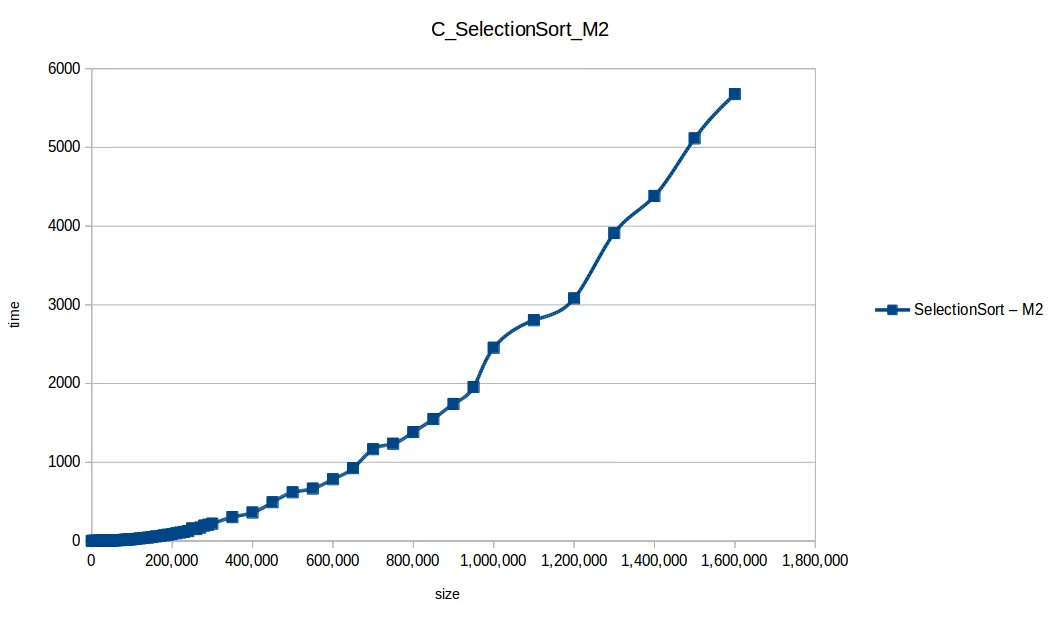

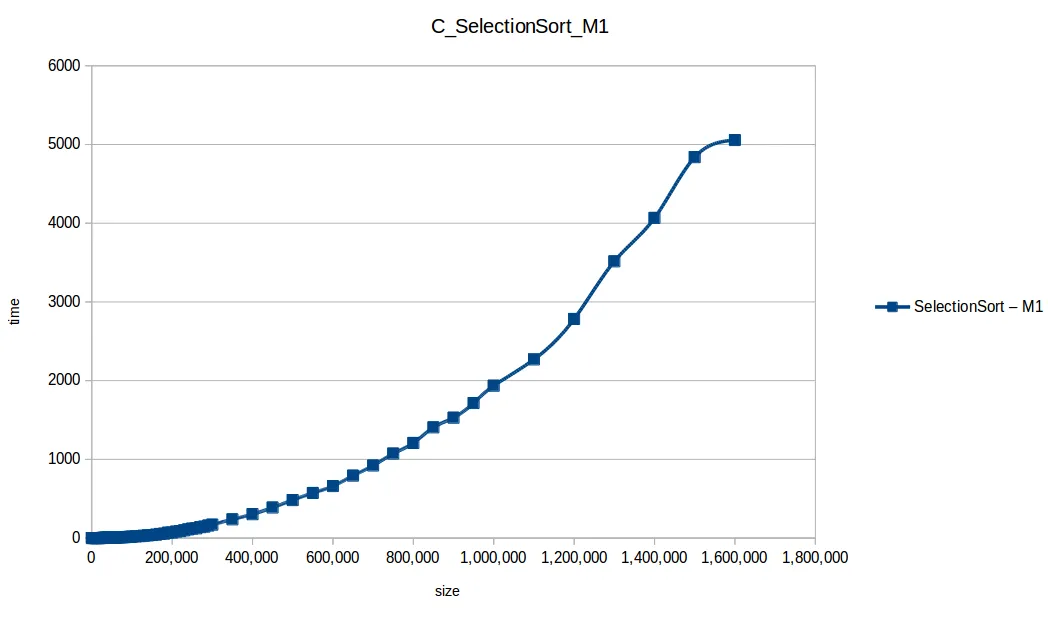

Selection Sort: O(n^2)

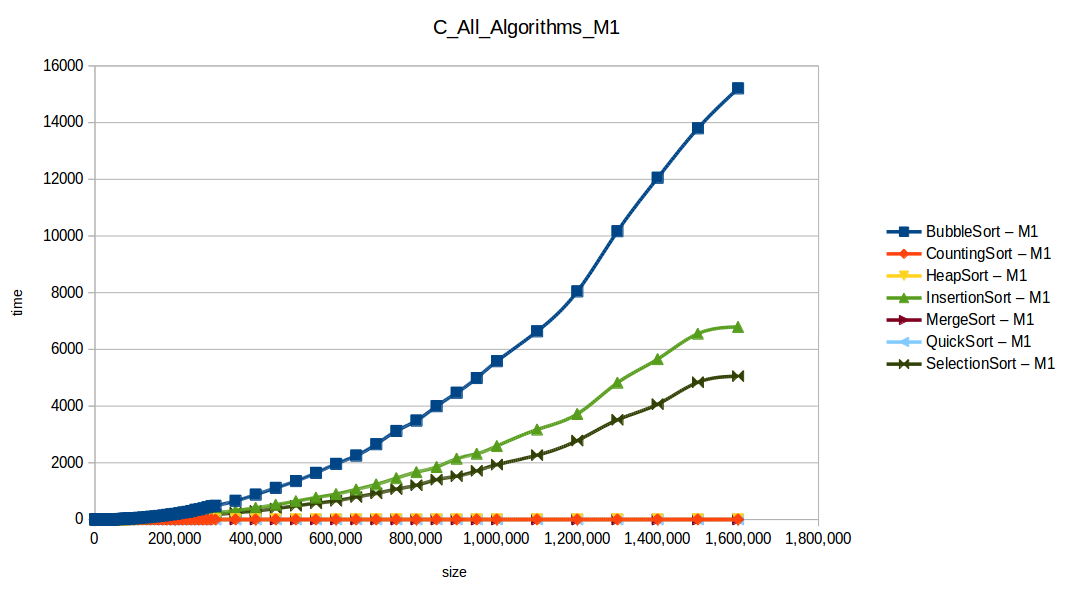

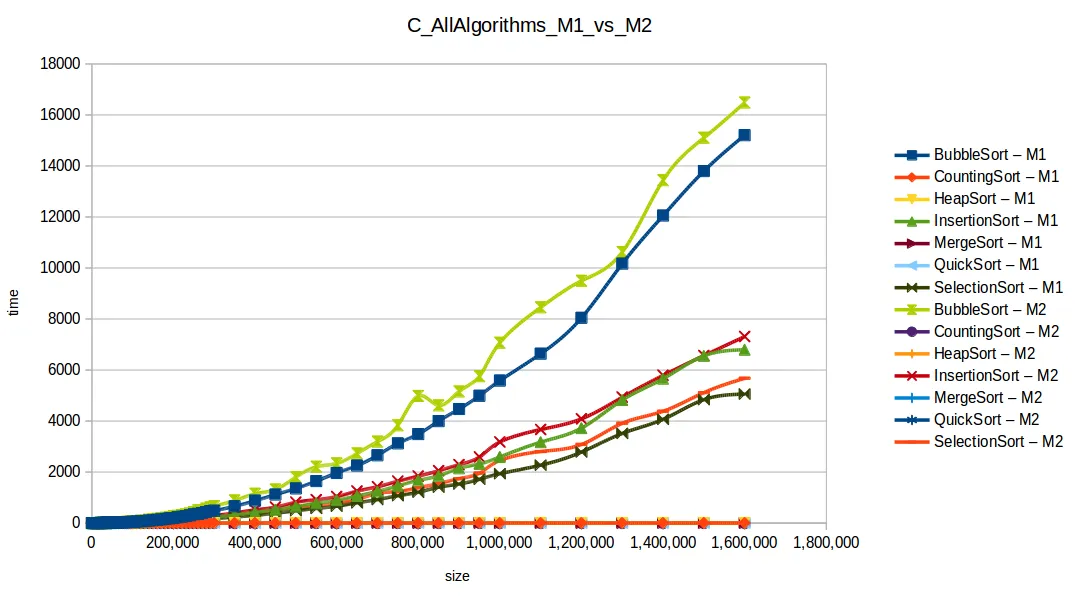

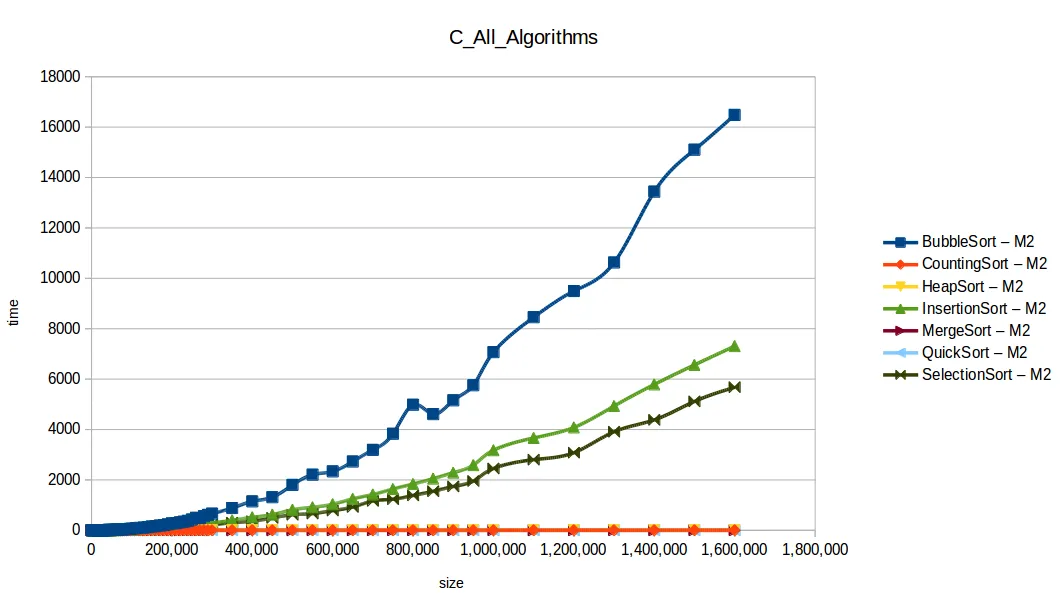

Full comparison chart

As expected, Bubble Sort is the clear loser. The fast group (quickSort, mergeSort, heapSort, countingSort) overlaps because of chart scale.

---

Last 7 response-time points

Machine 1

Size	BubbleSort	CountingSort	HeapSort	InsertionSort	MergeSort	QuickSort	SelectionSort
1,000,000	5584.254499	0.016609	0.747395	2592.498977	0.704281	0.291499	1935.487457
1,100,000	6637.222252	0.019187	0.925764	3171.445715	0.653455	0.471039	2269.966268
1,200,000	8045.953682	0.023652	0.913537	3722.638885	0.513099	0.239454	2783.279525
1,300,000	10169.383378	0.045208	0.713308	4824.250285	0.575149	0.261289	3514.914589
1,400,000	12053.658798	0.034613	1.489084	5658.739951	0.676112	0.279478	4066.729922
1,500,000	13798.854123	0.027525	1.094257	6555.365499	0.743651	0.315602	4839.340426
1,600,000	15205.680544	0.028478	0.996648	6794.512119	0.725347	0.325990	5056.213092

Machine 2

Size	BubbleSort	CountingSort	HeapSort	InsertionSort	MergeSort	QuickSort	SelectionSort
1,000,000	7069.317038	0.032415	0.752168	3178.694237	0.558200	0.315689	2454.531144
1,100,000	8458.150387	0.024157	0.842038	3666.359787	0.557481	0.284579	2804.449695
1,200,000	9495.898708	0.026530	0.882819	4084.581924	0.616636	0.358502	3081.748250
1,300,000	10626.023771	0.027309	0.913814	4933.201883	0.753890	0.401456	3912.714921
1,400,000	13439.250082	0.030009	1.061221	5790.797804	0.633180	0.442449	4066.729922
1,500,000	15102.736592	0.031826	1.064744	6565.630358	0.788551	0.400238	5114.565289
1,600,000	16483.694808	0.039298	1.365129	7311.347004	0.760618	0.449284	5676.768371

---

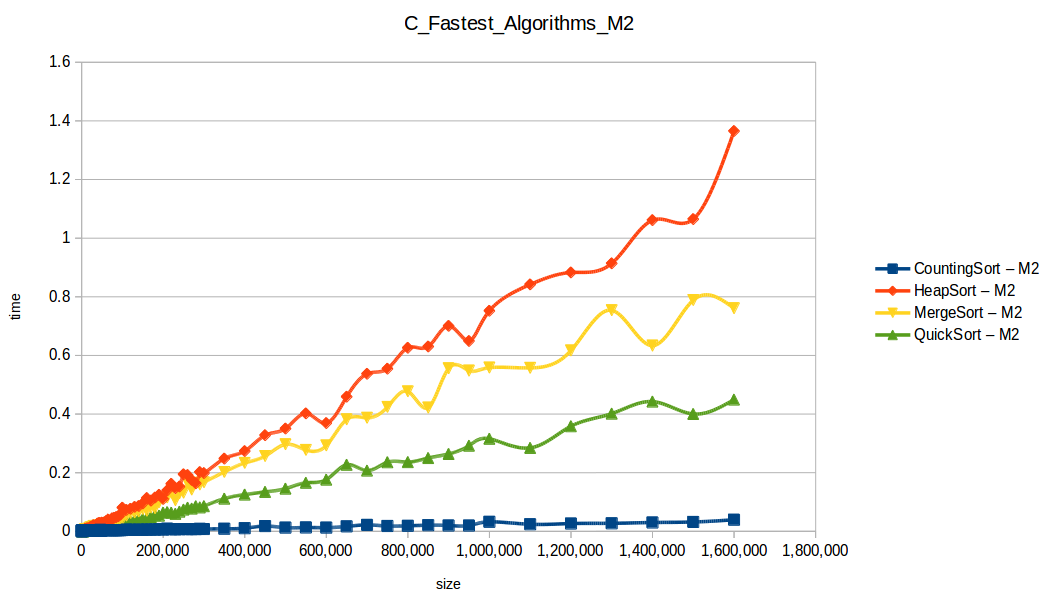

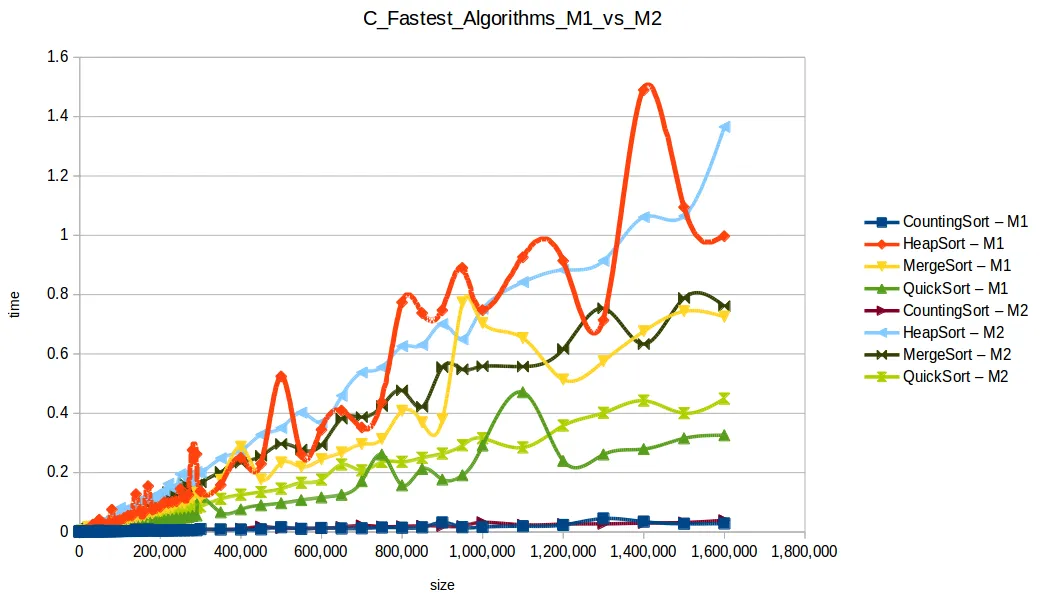

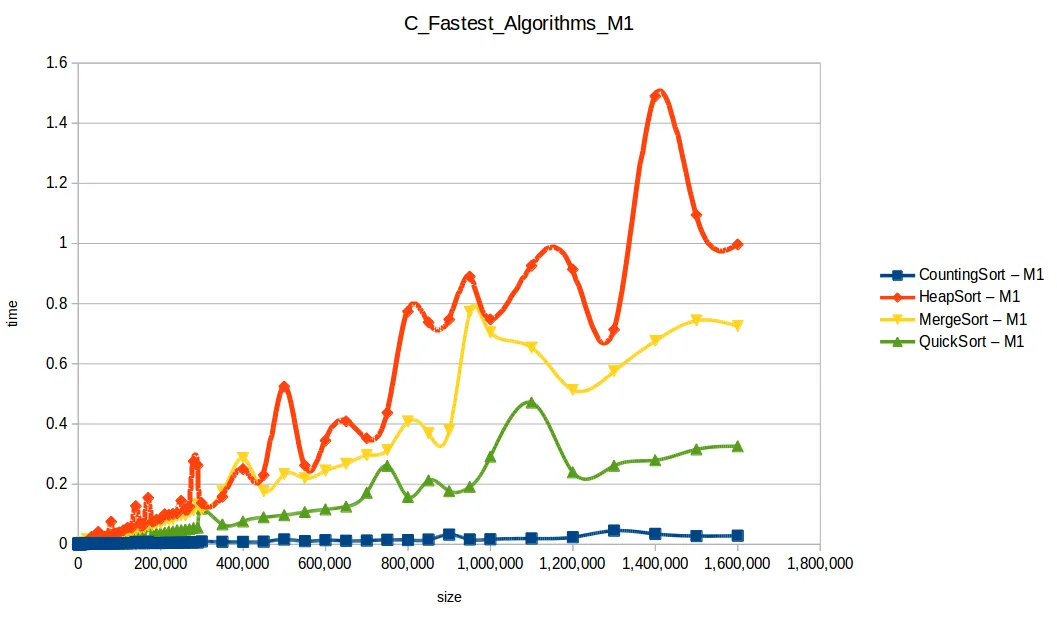

Fast algorithms only

Counting Sort wins in this setup (O(n+k)), but it has practical limits:

• It only works on integer ranges.
• Memory usage can explode when max - min is large.

Quicksort was second and is broadly useful, but it can degrade to O(n^2) in bad pivot/distribution cases.

---

Machine 1 vs Machine 2

Why was M1 sometimes faster than M2 despite fewer resources?

Because these algorithm implementations were not parallelized. Even with two cores, M2 was effectively using one core for each single-threaded run.

Per-core frequency mattered:

• M1: 2399.998 MHz
• M2: 1799.998 MHz

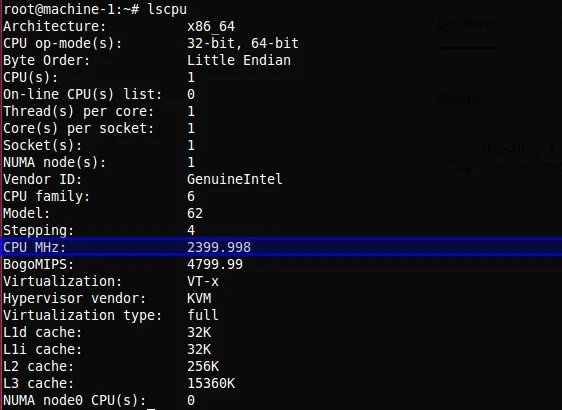

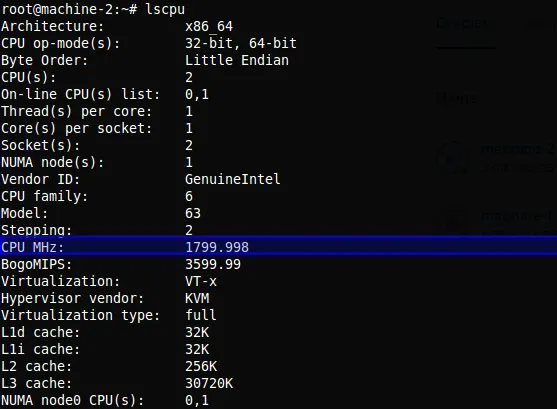

System architecture screenshots

Frequency units:

• 1 Hz = one cycle/second
• 1 KHz = 1024 Hz
• 1 MHz = 1024 KHz
• 1 GHz = 1024 MHz
• 1 THz = 1024 GHz

Command used:

$ lscpu

---

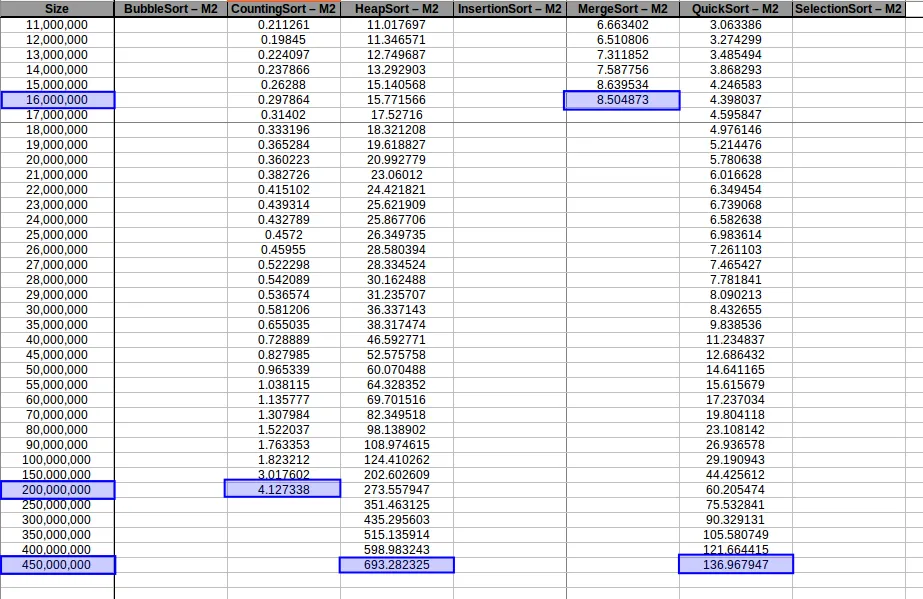

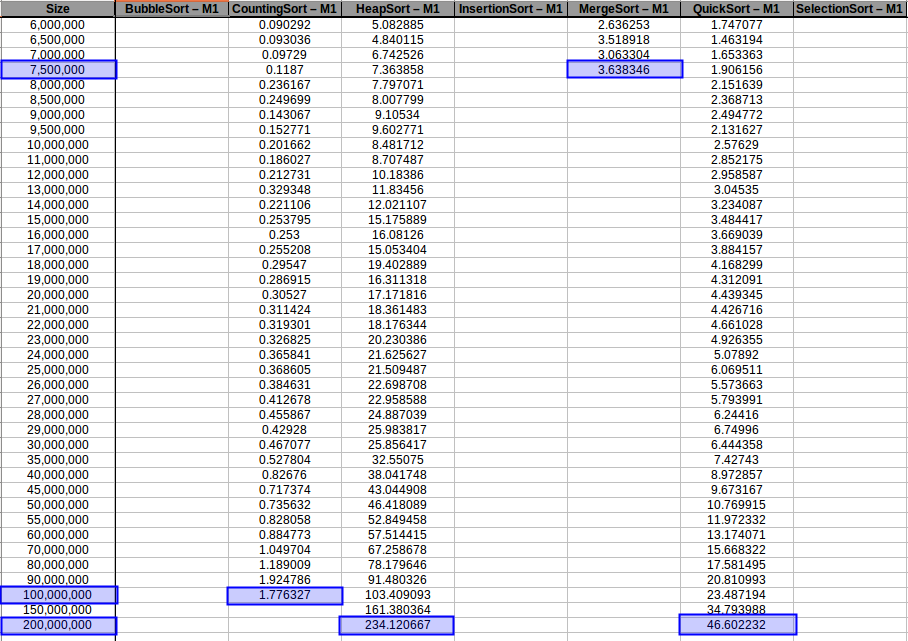

Extended memory-capacity phase

To better use machine resources, I ran only the efficient algorithms at larger scales:

This is where M2’s extra RAM clearly helped.

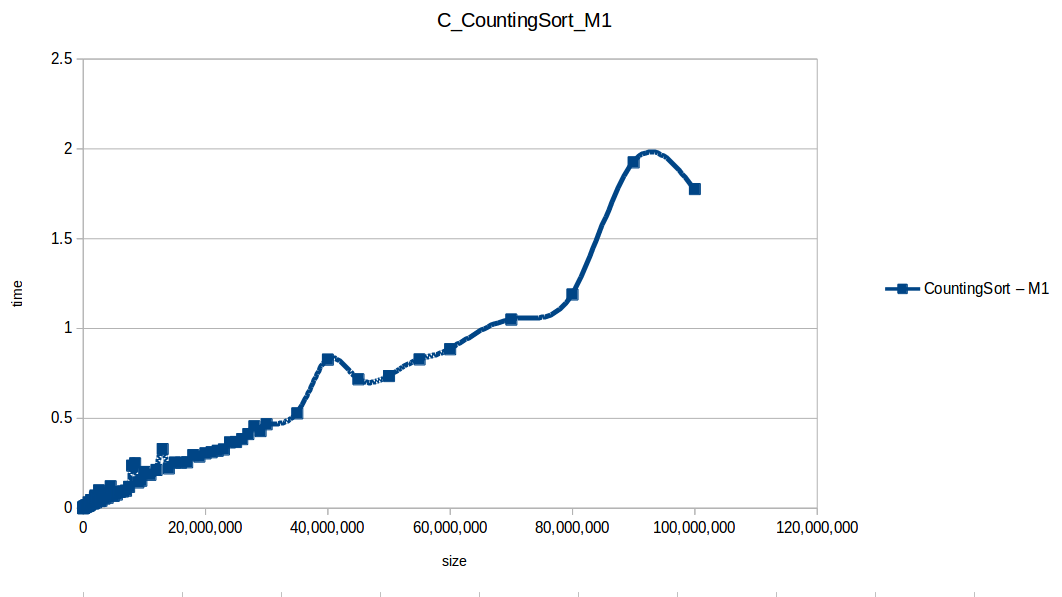

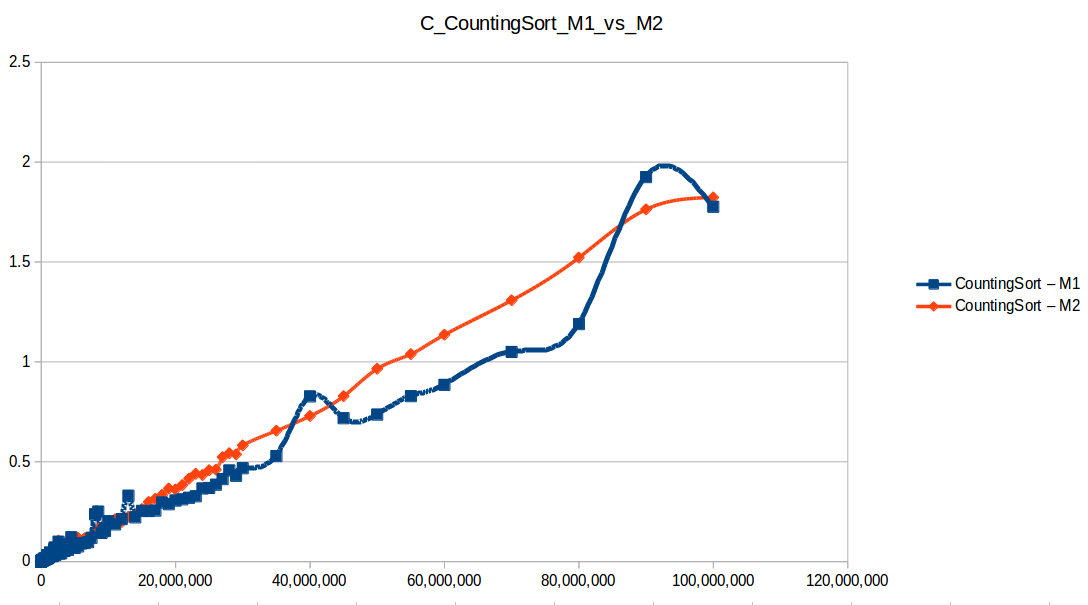

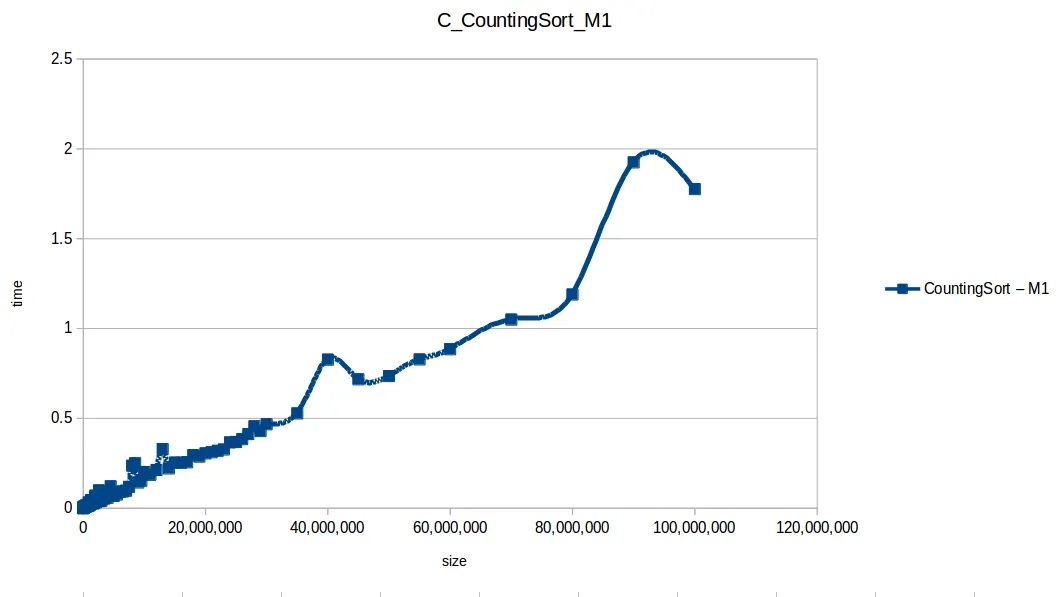

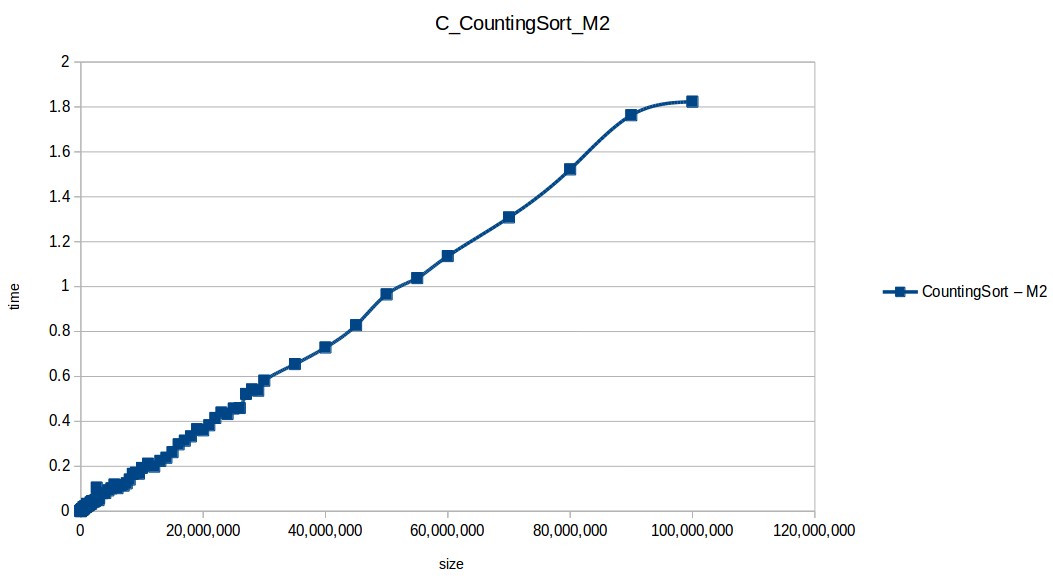

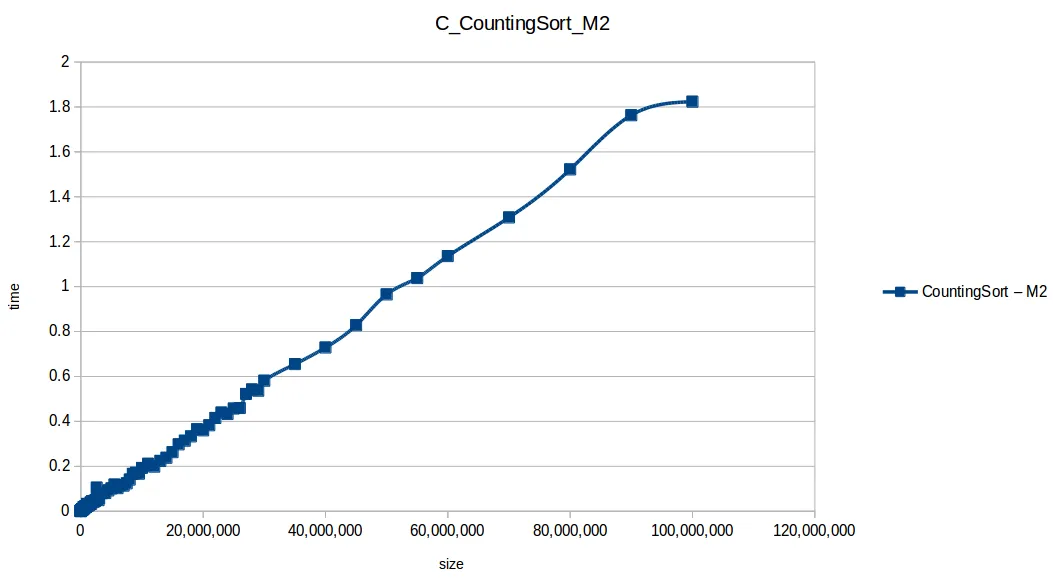

Counting Sort at max scale

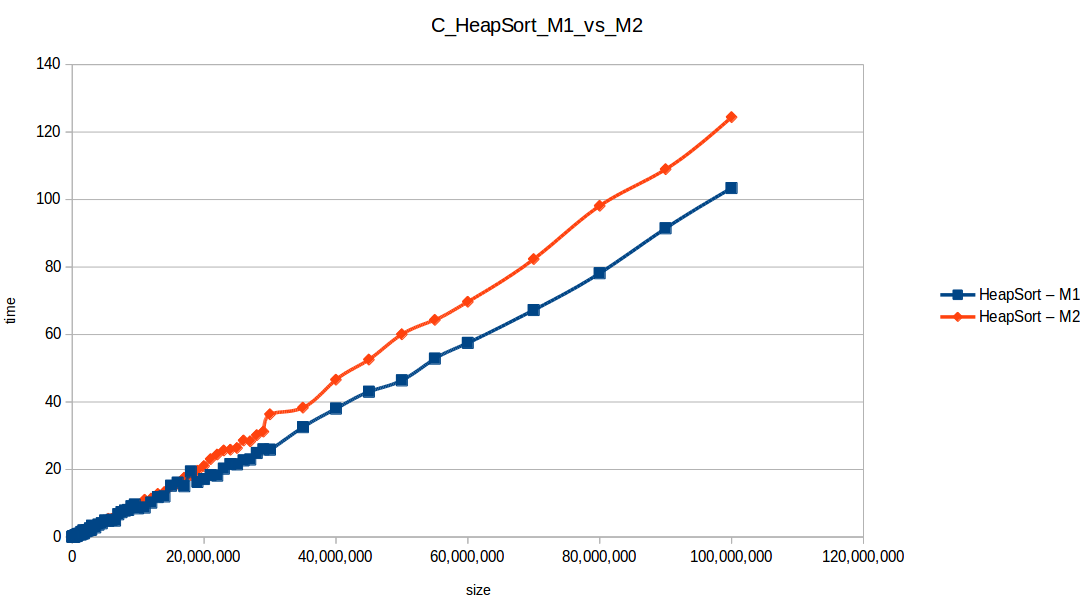

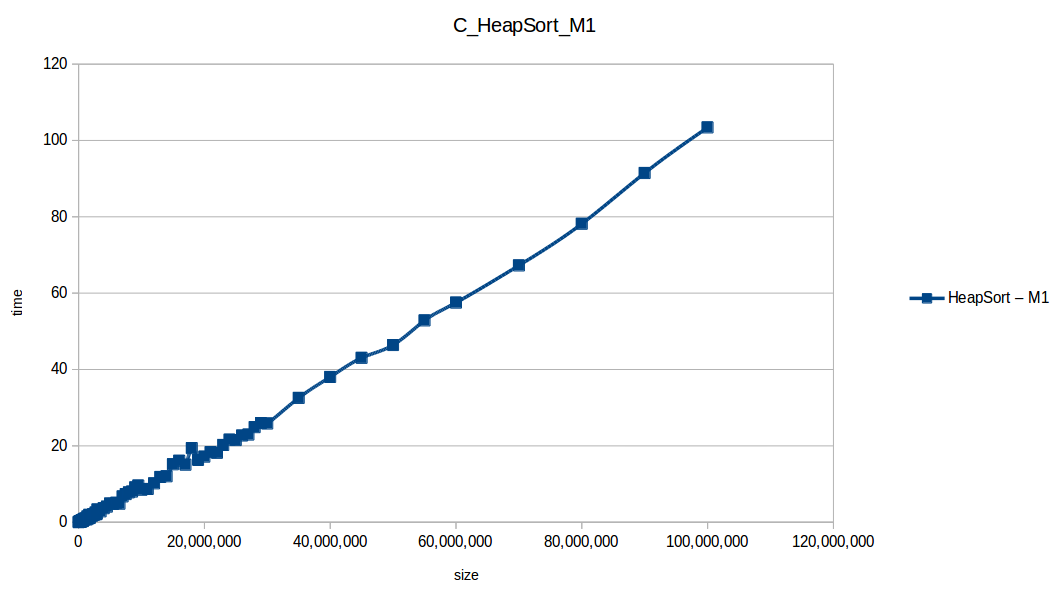

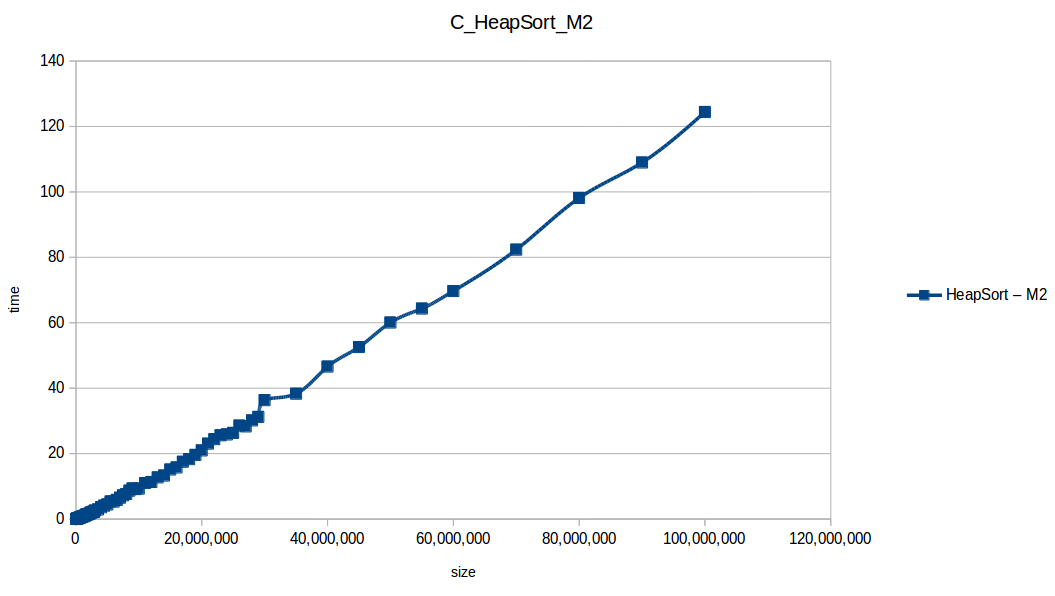

Heap Sort at max scale

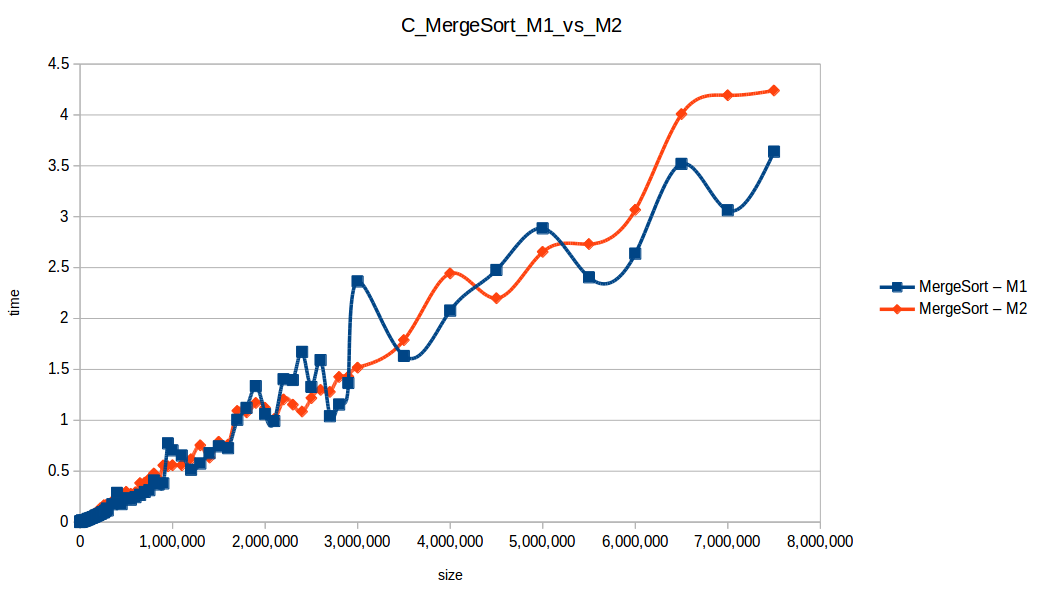

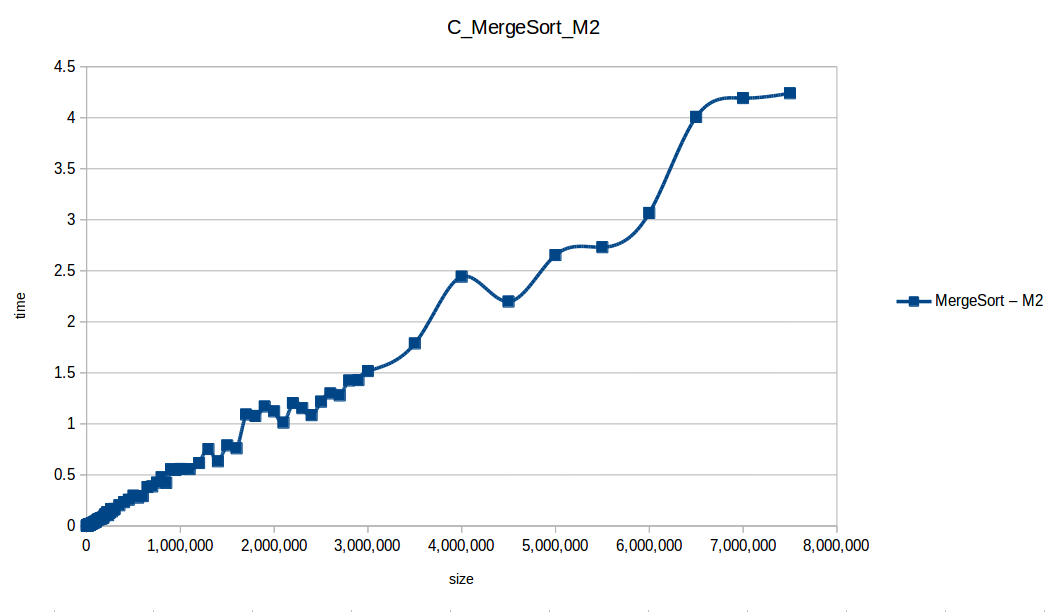

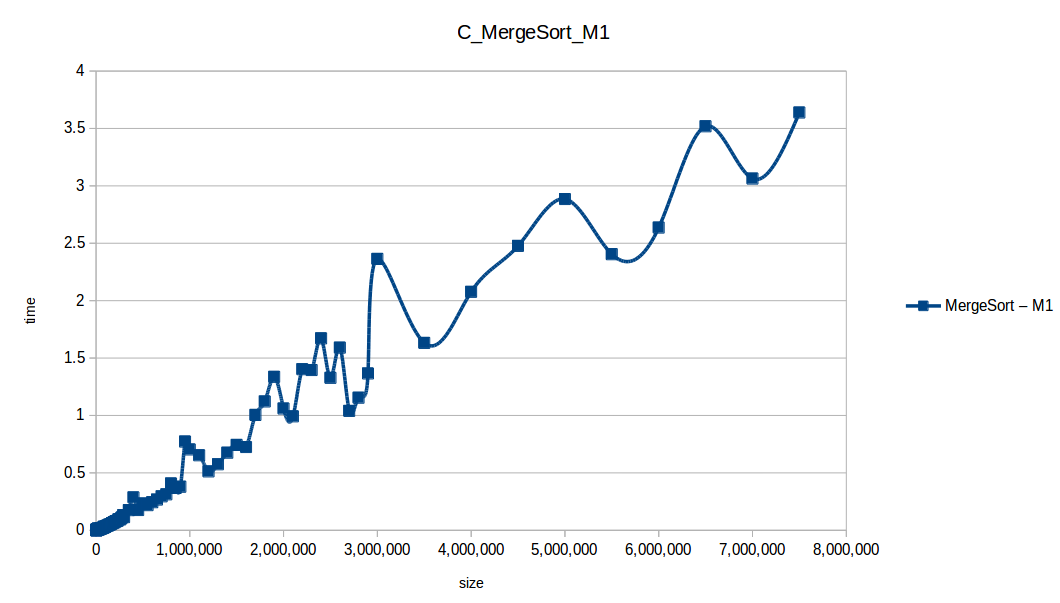

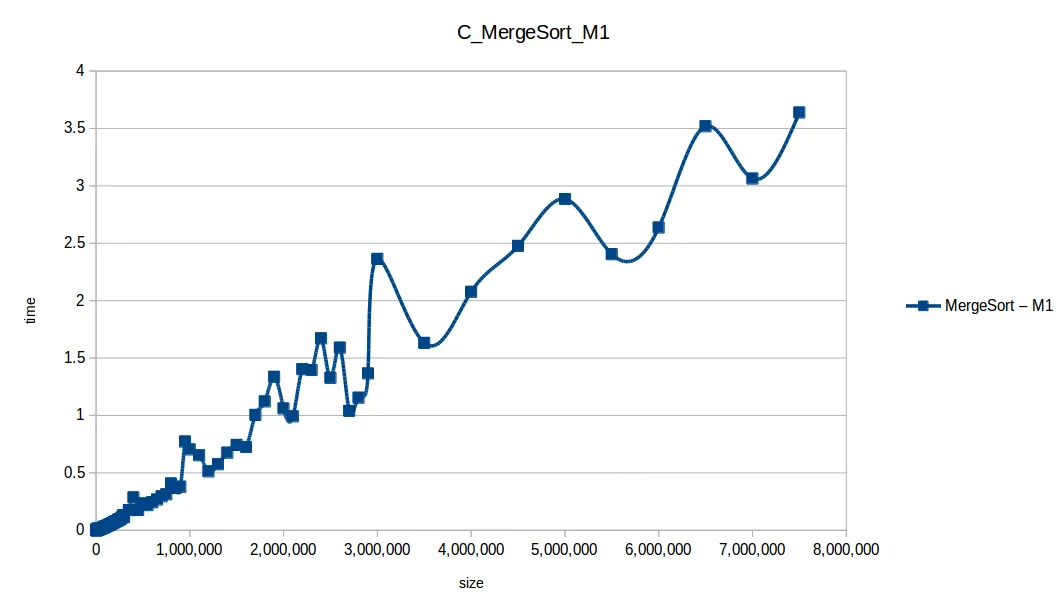

Merge Sort at max scale

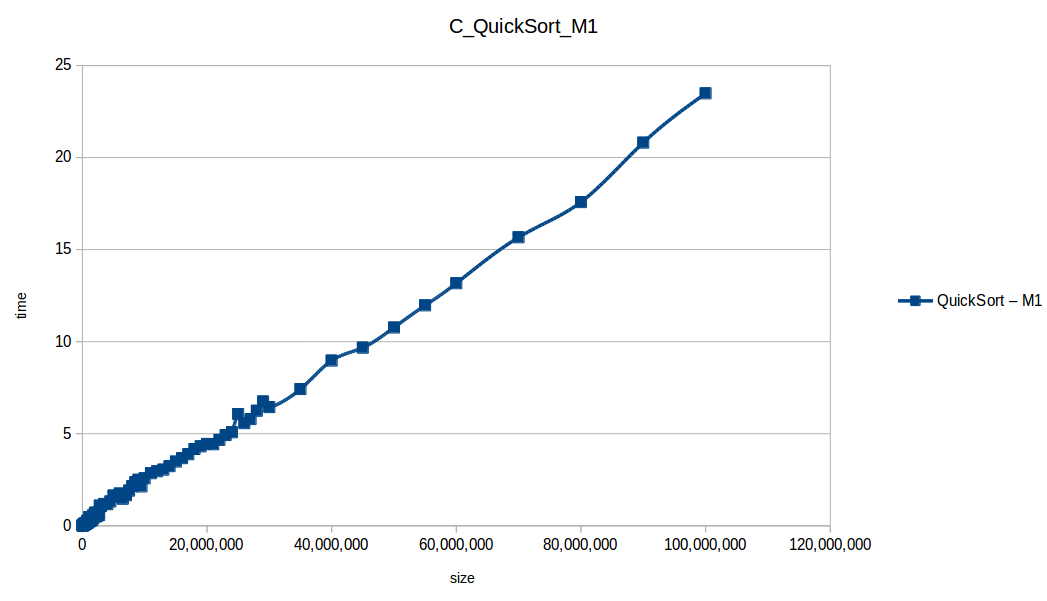

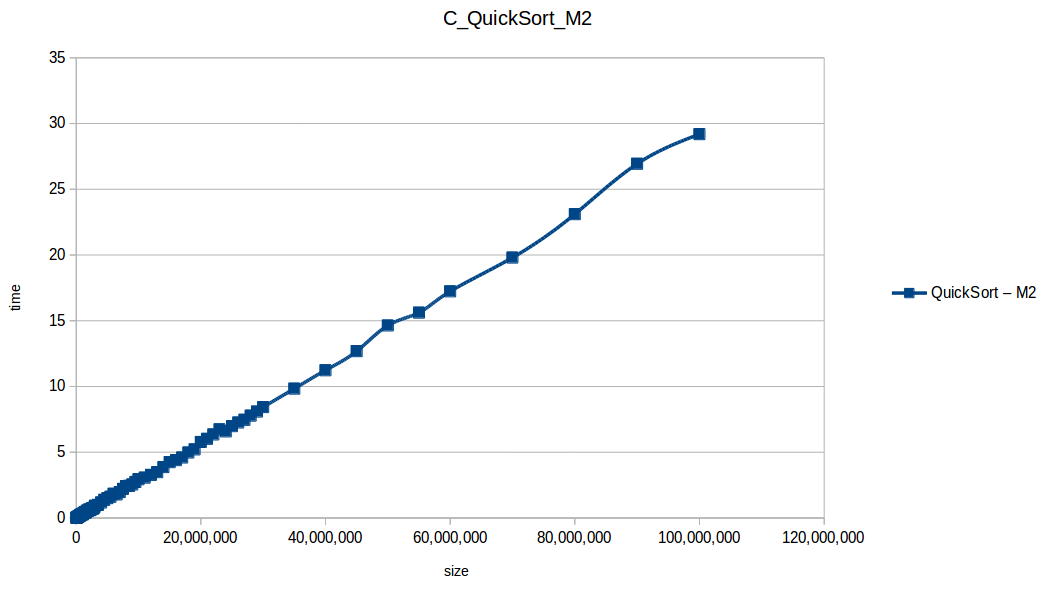

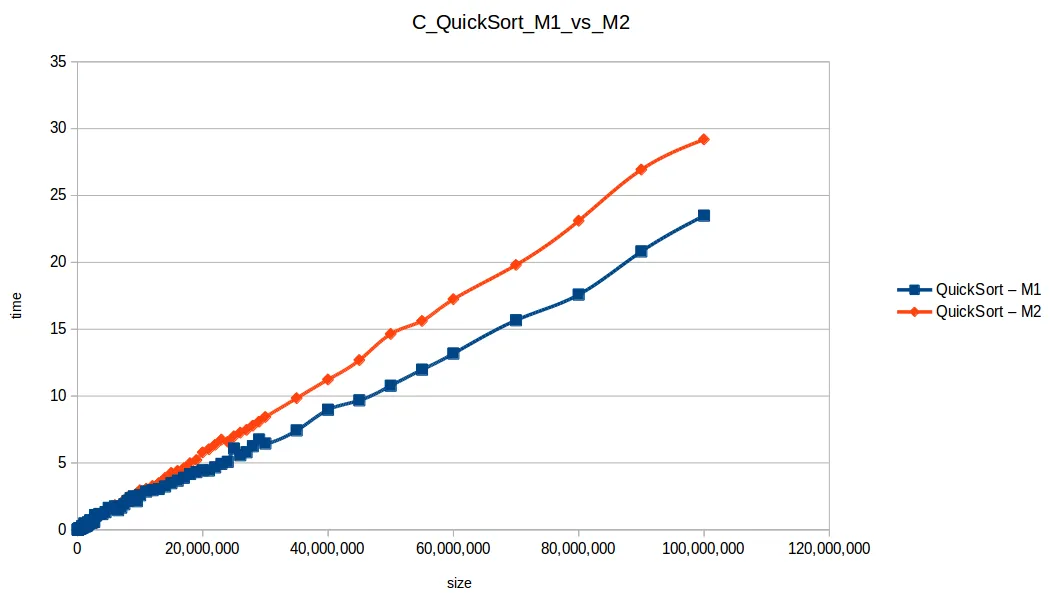

Quick Sort at max scale

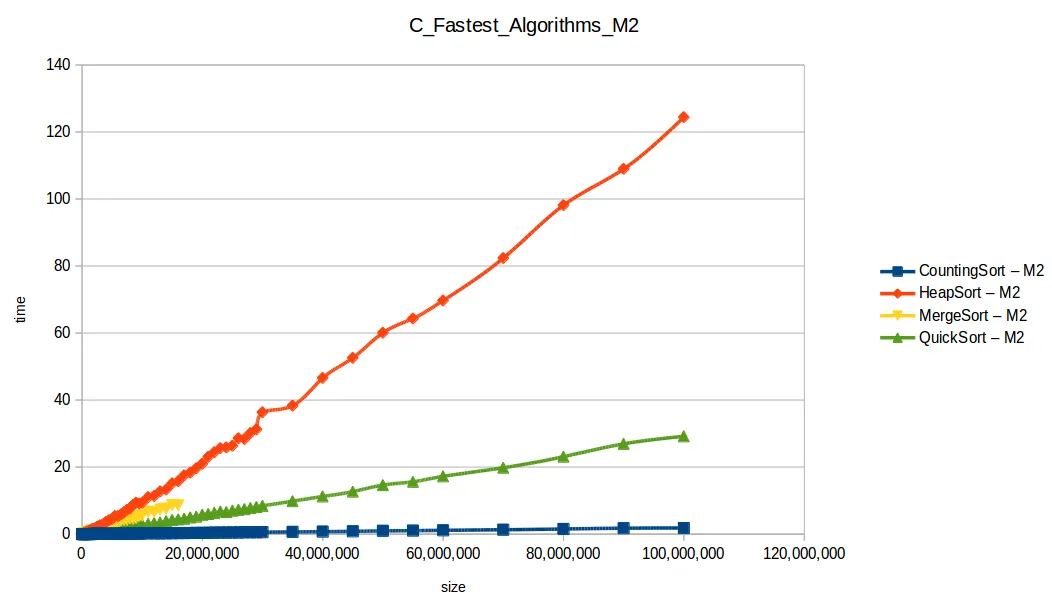

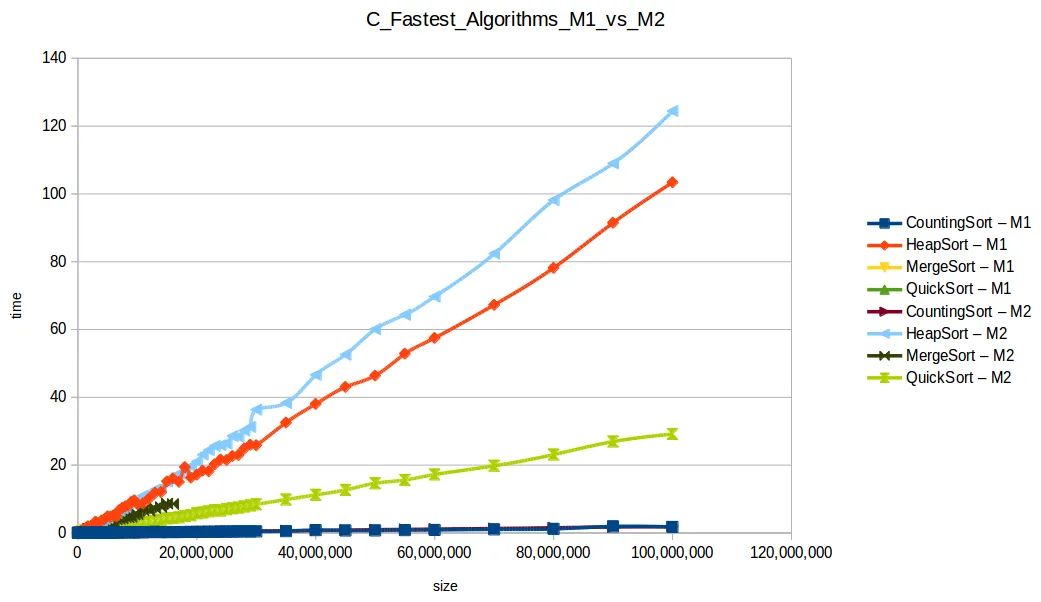

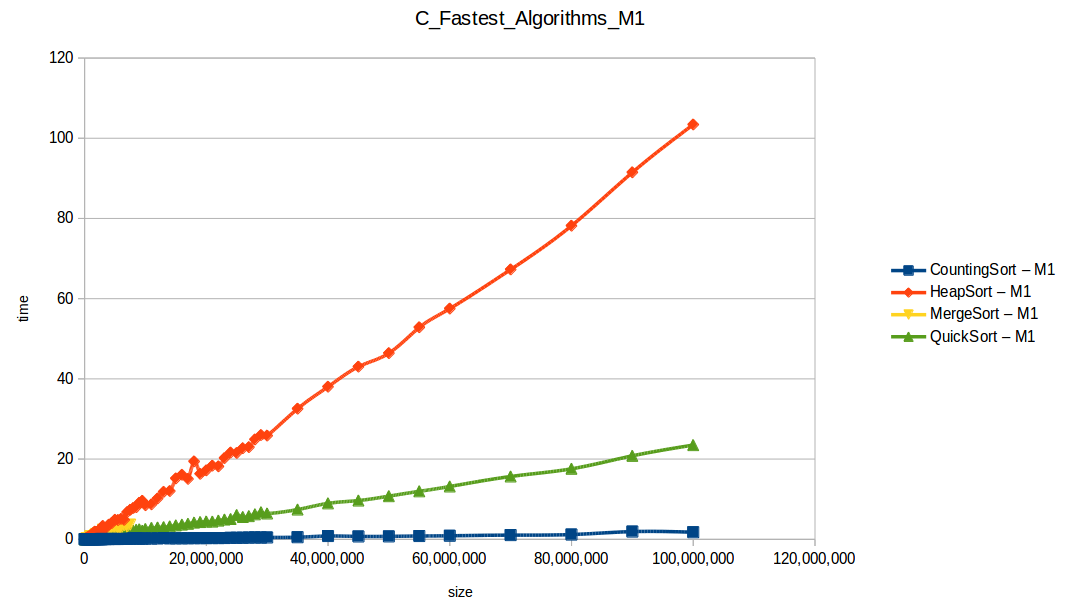

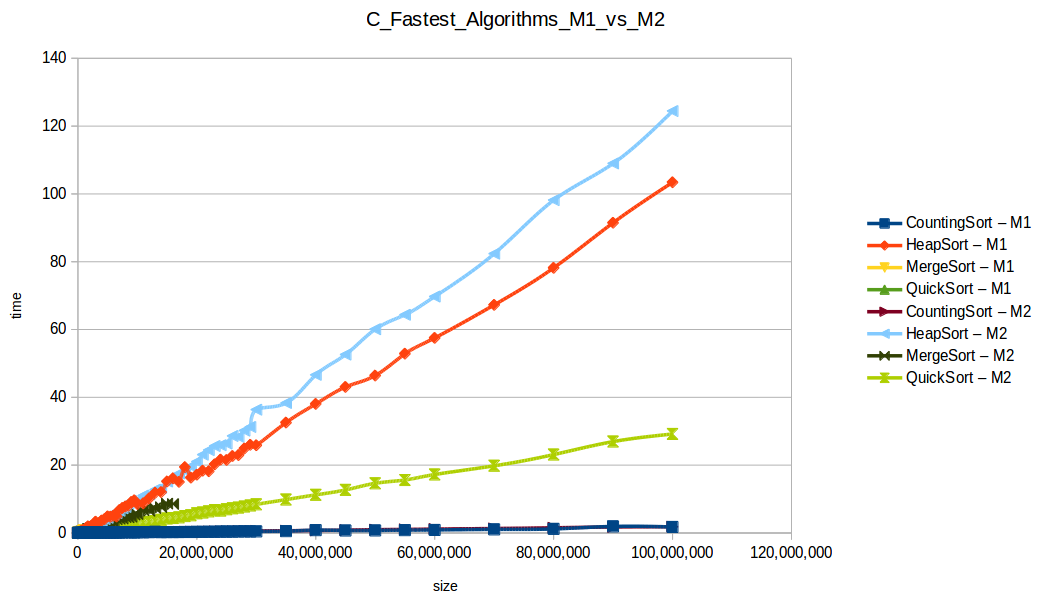

Final fast-algorithm comparison

With larger input volumes, curves became more stable and easier to compare against theoretical complexity behavior.

---

Closing thoughts

This exercise reinforced a few core lessons:

• Algorithmic complexity matters, but implementation and hardware context matter too.
• Extra RAM may not speed single-threaded runs directly, but it can increase practical dataset limits.
• More cores do not help unless the implementation is actually parallel.

If you are getting started in computer science, I hope this serves as a useful reference.

Resources: GitHub repository

---

“Intelligence consists not only in knowledge, but also in the skill to apply knowledge in practice.”
Aristotle
